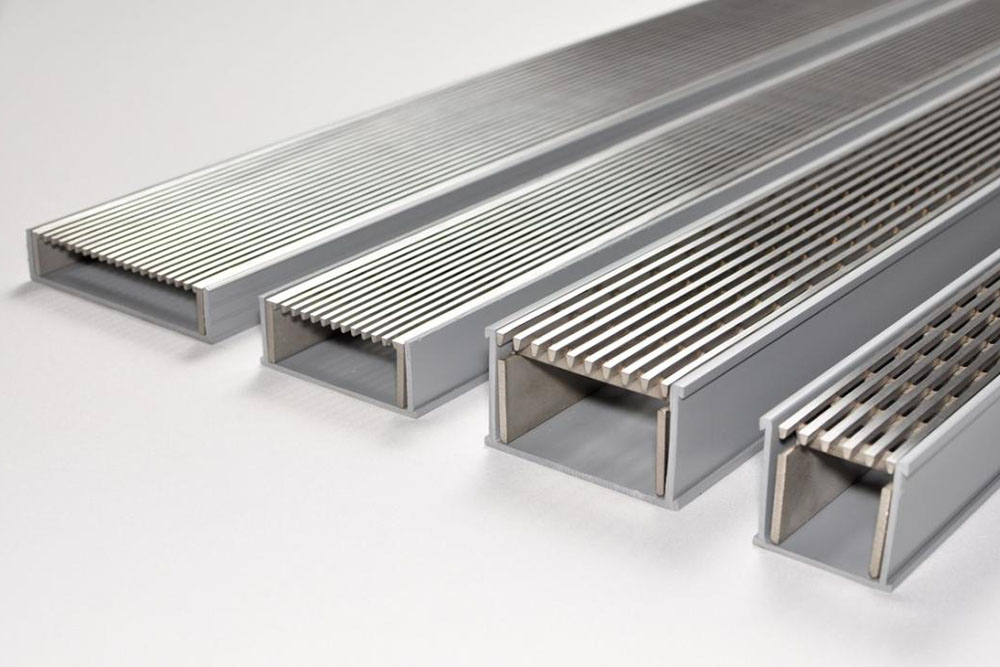

Wedge Wire Grate & Linear Drain

Our wedge wire grate is made of stainless steel, the most outstanding feature is durability and non-clogging. Its self-cleaning feature makes it easier to maintain than common grate. Our linear wedge wire drain has been polished, and the surface is flat and smooth, not only beautiful, but also practical. In addition, the V-wire structure allows a higher flow rate of water, and it allows thin and long solids to pass through, while the common perforated or expanded steel grate will be blocked.


  • Material: stainless steel 301, 304, 316, 316L, 321, 430, etc.
  • Slot size: 2.5 / 3 / 3.5 mm
  • Wedge wire: 2×3 mm, 2.5×3.5 mm, 3×4.2 mm, 3×5 mm.
  • Support line: 3×6.5 mm.
  • Support line spacing: 20/25/30 mm or as required.
  • Width: 50mm-400mm
  • Length: 100mm-3000mm
  • Shape: rectangle, arc
  • Surface treatment: polishing, pickling, wire drawing, PVD, etc.
  • Other specifications can be customized according to customer requirements.

wedge wire strainer

wedge wire grating

wedge wire linear shower drain

wedge wire drain

Wedge Wire Drain Applications

Stainless Steel Wedge Wire Grate

The wedge wire drain is used in the gutterway, the long and narrow soot can prevent it from clogging and allow higher flow rates.

wedge wire shower grate

Our wedge wire shower grate is made of stainless steel, the surface is polished, which is burr-free and no sharp edge, protect your feet from scratches.

wedge wire grate for revolving door

The wedge wire grate is used as the base of the revolving door to prevent the accumulation of dust and debris.

wedge wire linear drain

Wedge wire linear drain has the characteristics of preventing clogging and accelerating water flow.
